Model: PS01
● Plastic part: new material no recycling, POLYAMIDE6 + GF30%
● Adjustable pressure button/differential pressure switch
● Ordinary wells& tube wells both available
● Optional Connection Thread size: G1’’, G1 1/4’’, G1 1/2’’
● Optional Power: 1.1kw, 1.8kw, 2.2kw
● Body is firm and watertight to protect the circuit board inside
● Protect Functions: Delay Startup, Dry Running Protection
Rated voltage | 110V/220V/85V-285V |
Maximum current | 10A/20A/30A |
Frequency | 50/60Hz |
Maximum power | 1.1kw/1.8kw/2.2kw |
Interface thread | G1"/G11/2"/G11/4" |

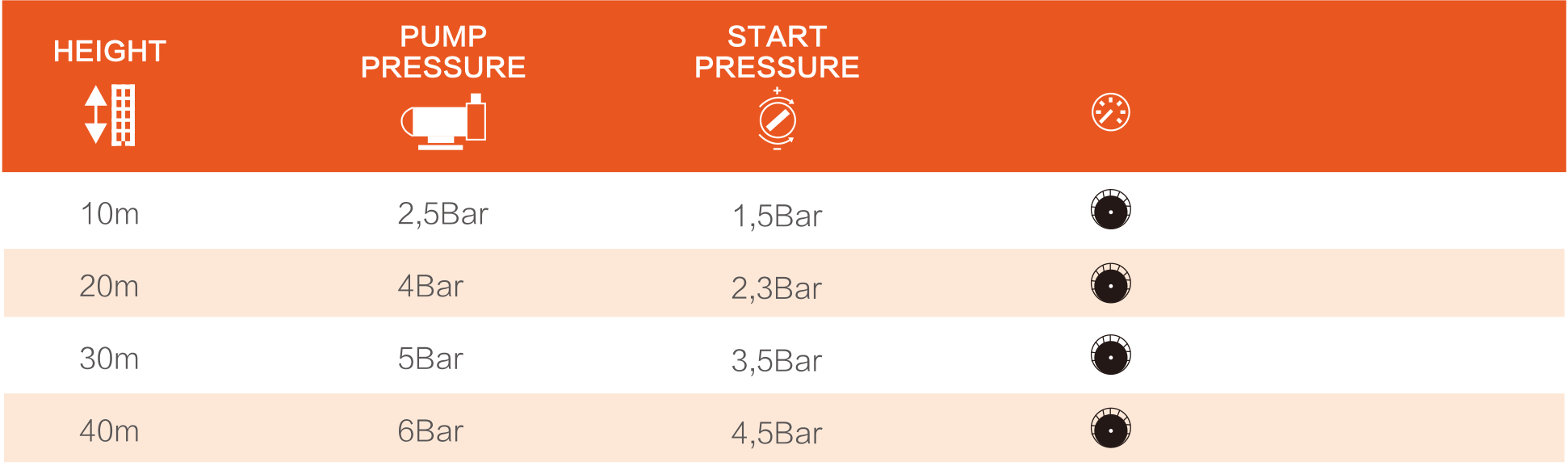

Start pressure | 1.0Bar/1.5Bar/2.2Bar/1.0-2.5Bar/2.5-4.0Bar |
Maximum working pressure | 10Bar |
Protection grade | IP65 |
Maximum operating temperature | 60℃/100℃ |
Color | optional |
Cable | optional |
Model |
Packing |
Size |
G.W/N.W.(KGS) |
Loading |

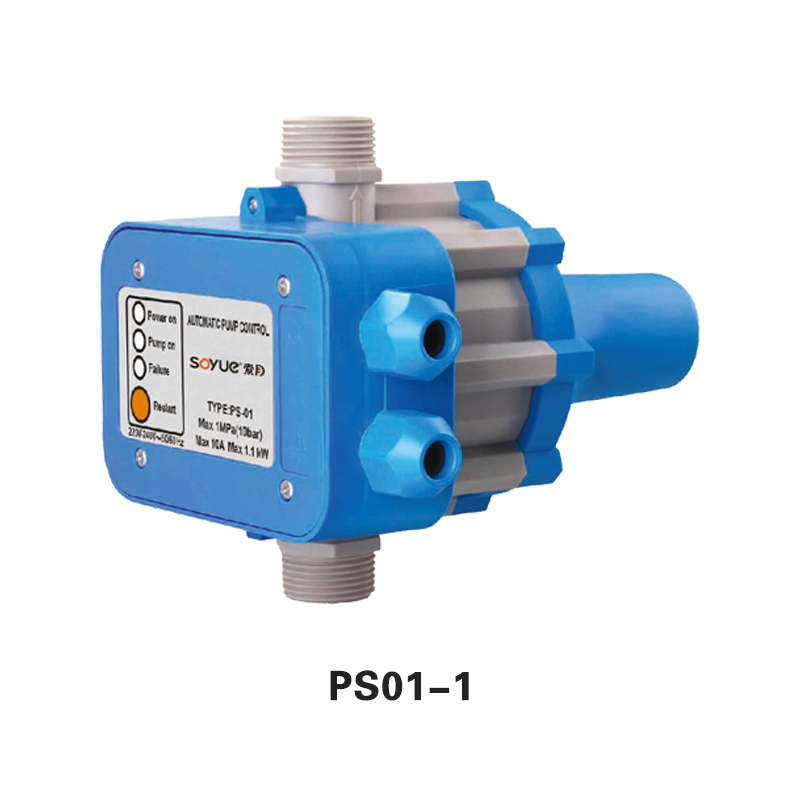

PS01-1 |
12pcs/ctn |
52*47*37 |
17.2/16.2 |
40ft HQ:9000pcs,20ft:3700 |
PS01-2A |
12pcs/ctn |
52*47*37 |
17.2/16.2 |
40ft HQ:9000pcs,20ft:3700 |
PS01-2B |
12pcs/ctn |
56*47*37 |
17.2/16.2 |
40ft HQ:8200pcs,20ft:3300 |

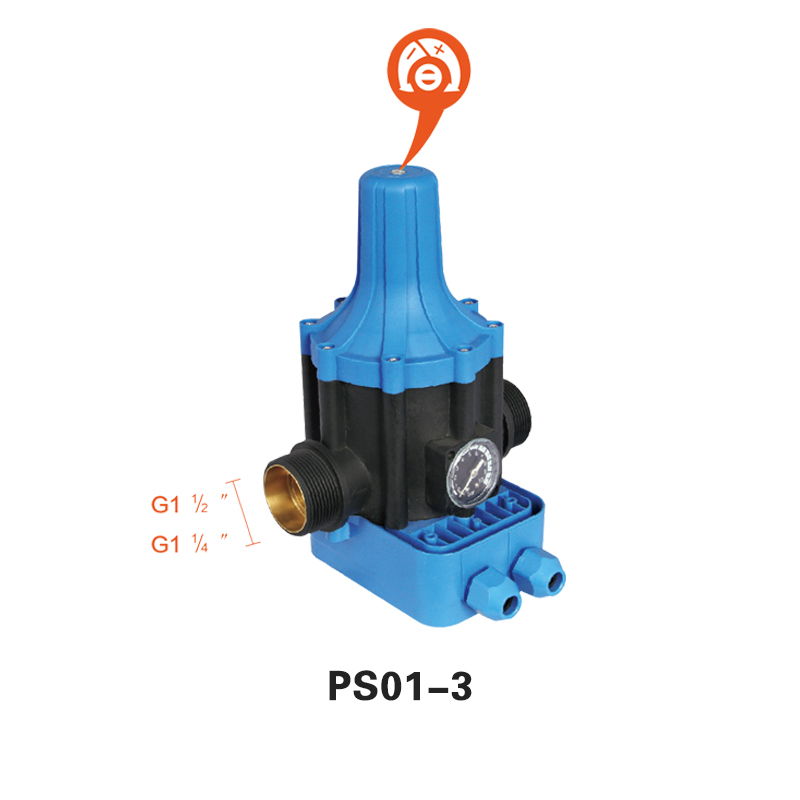

PS01-3 |
12pcs/ctn |
56*50.5*38 |
22.2/21.1 |
40ft HQ:7500pcs,20ft:3000 |
Taizhou Soyue Electronic Technology Co.Ltd established in 2010, is a leading professional manufacturer for research,development ,production and sales of automatic pressure controls, float switches and accessories for water pump.
To meet all kinds of needs, we can develop and produce to client 's special demand. We have our own 3D designer, moulddeveloping lines, high pressure PU injection machine, PCB machine line and advanced testing equipment, which can be easier for customers to design and develop new products. As Automatic Pump Control Made By POLYAMIDE Material suppliers and OEM/ODM Automatic Pump Control Made By POLYAMIDE Material factory, we achieve the quality management and have received CCC securitycertification and ISO9001:2008 quality system certification. Our products all successfully meet standards with European CE,TUV,ROHS, and UL Certificates.
look forward to working with you wholeheartedly.
