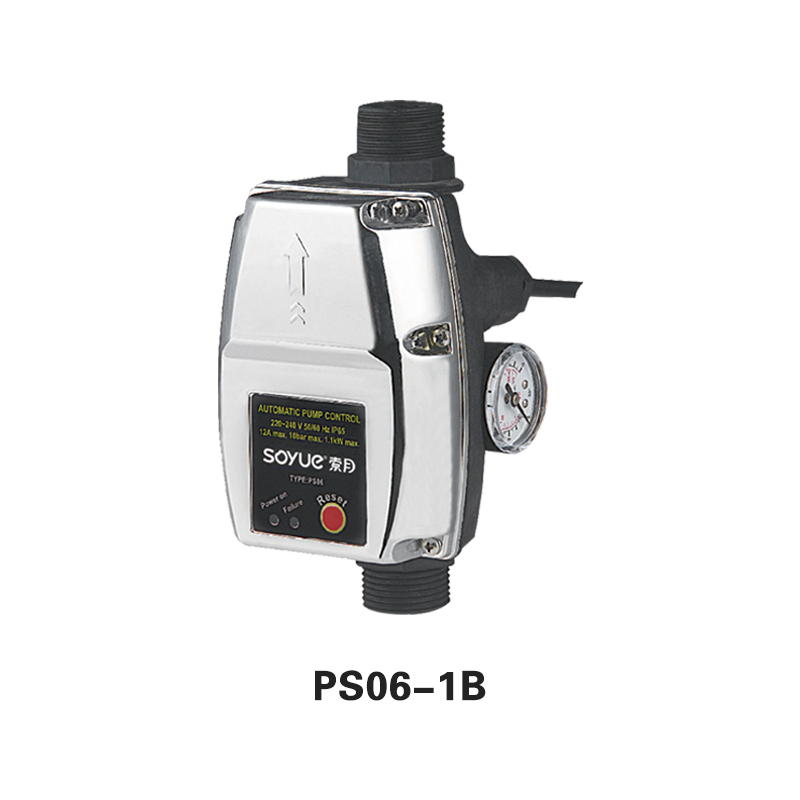

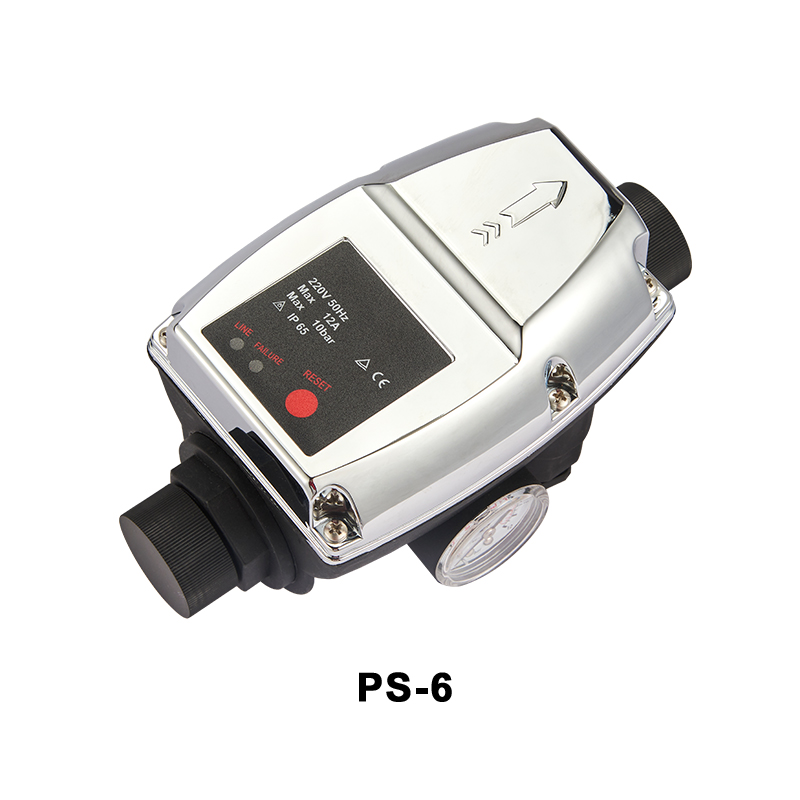

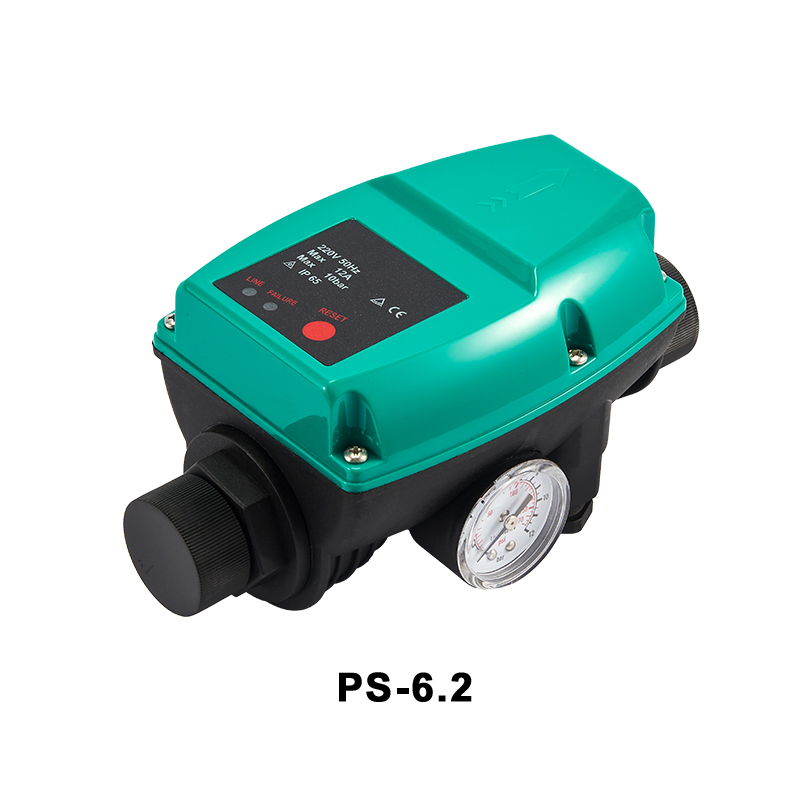

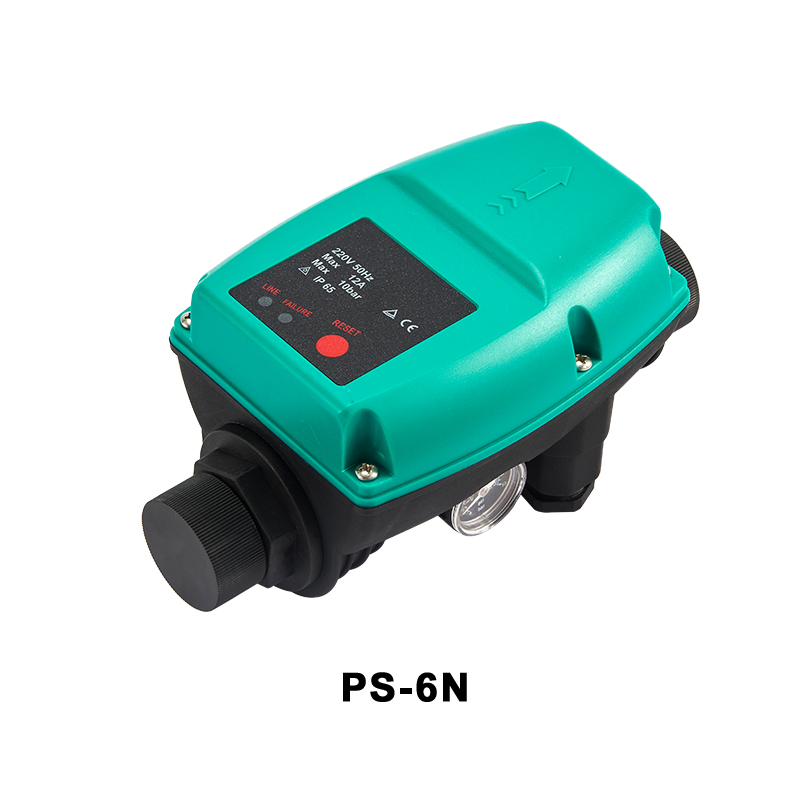

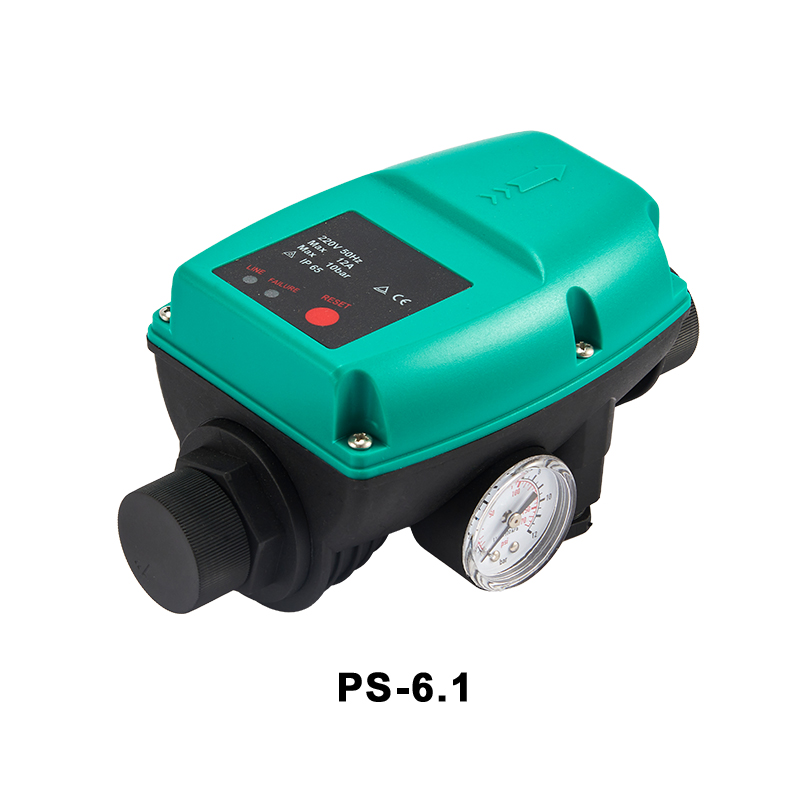

Turtle Shape Pressure Switch For Water Pump Series

Model: PS06

● Turtle shell shape

● Pressure Gauge/Meter for precise measurement

● Inner adjustable pressure regulator makes a more pretty outlook

● Electronic board/Circuit board inside body functioning

● Screw Joint: G1" size male thread

● Automatically Restart function

● 10 Bar maximum working pressure

  • Parameter
  • Package
  • Additional Information
  • Rated voltage 110V/220V/85V-285V
    Maximum current 10A/20A/30A
    Frequency 50/60Hz
    Maximum power 1.1kw/1.8kw/2.2kw
    Interface thread G1"

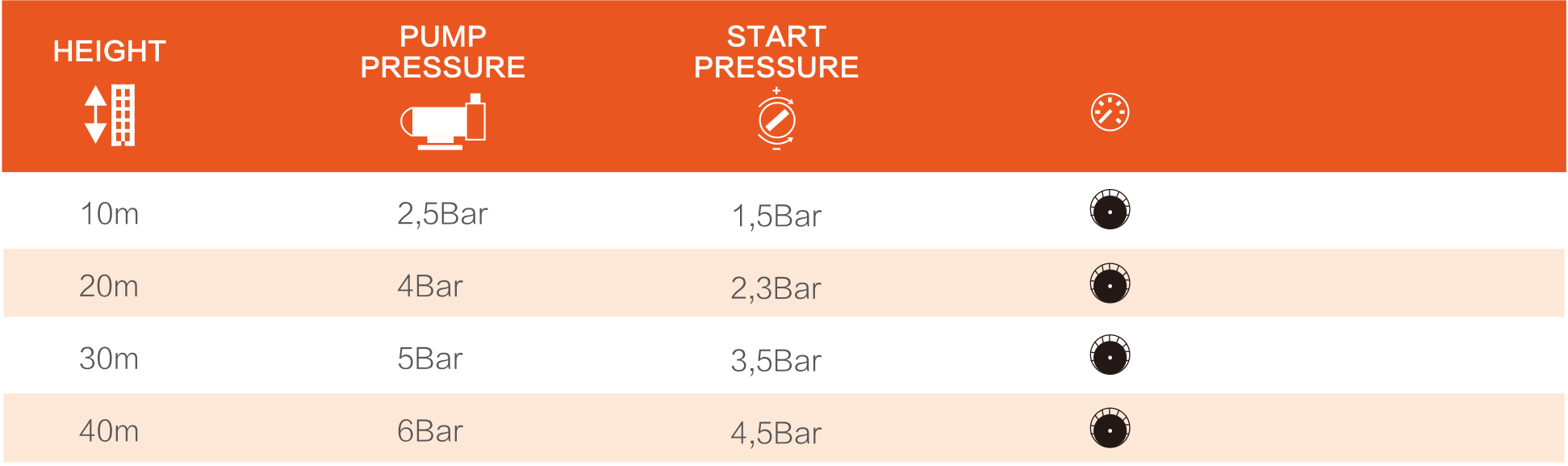

    Start pressure 1.0Bar/1.5Bar/2.2Bar/1.0-2.5Bar/2.5-4.0Bar
    Maximum working pressure 10Bar
    Protection grade IP65
    Maximum operating temperature 60℃/100℃
    Color optional
    Cable optional


  • Certificate


  • Test Report

    Test Report

  • Test Report 2

    Test Report 2

Professional Pressure Controller Expert

Taizhou Soyue Electronic Technology Co.Ltd established in 2010, is a leading professional manufacturer for research,development ,production and sales of automatic pressure controls, float switches and accessories for water pump.

To meet all kinds of needs, we can develop and produce to client 's special demand. We have our own 3D designer, moulddeveloping lines, high pressure PU injection machine, PCB machine line and advanced testing equipment, which can be easier for customers to design and develop new products. As Turtle Shape Pressure Switch For Water Pump Series suppliers and OEM/ODM Turtle Shape Pressure Switch For Water Pump Series factory, we achieve the quality management and have received CCC securitycertification and ISO9001:2008 quality system certification. Our products all successfully meet standards with European CE,TUV,ROHS, and UL Certificates.
