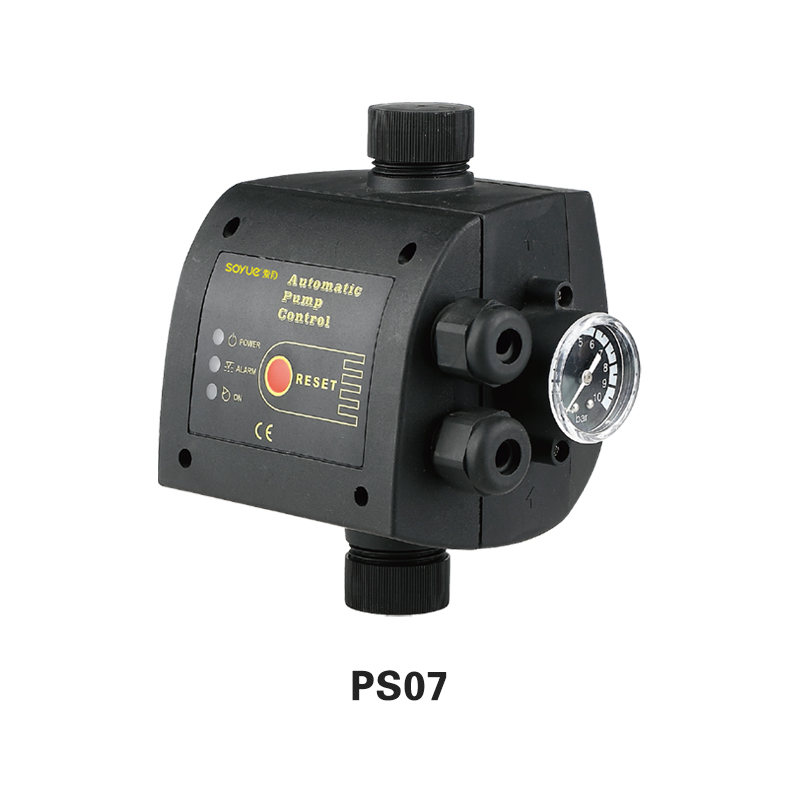

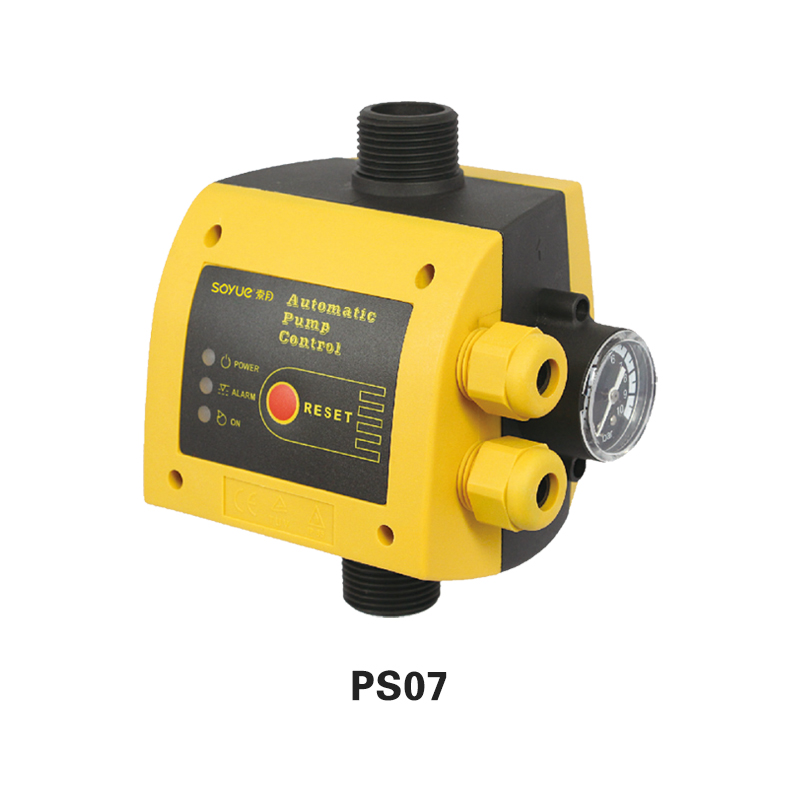

Model: PS07
● Streamlined design highlights dynamic glamour
● CE, RoHS, TÜV, UL certificate
● Dry Running Protection: Automatically stop pump after 1 minute without water detectable
● With Adjustable Pressure Regulator at backside
● Optional 30/50cm Cables
● High start pressure reach to 4.5 Bar
● Electronic/Printed circuit board with protection shield
| Rated voltage | 110V/220V/85V-285V |
| Maximum current | 10A/20A/30A |
| Frequency | 50/60Hz |
| Maximum power | 1.1kw/1.8kw/2.2kw |
| Interface thread | G1" |
| Start pressure | 1.0Bar-5.5Bar |
| Maximum working pressure | 10Bar |
| Protection grade | IP65 |
| Maximum operating temperature | 60℃/100℃ |
| Color | optional |
| Cable | optional |
|
Model |
Packing |
Size |
G.W/N.W.（KGS） |
Loading |
|
PS07 |
12pcs/ctn |
47*28.5*35 |
11.5/10.5 |
40ft HQ:17200pcs,20ft:7000 |
Taizhou Soyue Electronic Technology Co.Ltd established in 2010, is a leading professional manufacturer for research,development ,production and sales of automatic pressure controls, float switches and accessories for water pump.
To meet all kinds of needs, we can develop and produce to client 's special demand. We have our own 3D designer, moulddeveloping lines, high pressure PU injection machine, PCB machine line and advanced testing equipment, which can be easier for customers to design and develop new products. As Water Pump Automatic Pressure Switch, Water Pump Pressure Controller suppliers and OEM/ODM Water Pump Automatic Pressure Switch, Water Pump Pressure Controller factory, we achieve the quality management and have received CCC securitycertification and ISO9001:2008 quality system certification. Our products all successfully meet standards with European CE,TUV,ROHS, and UL Certificates.
look forward to working with you wholeheartedly.
The Turtle Shape Pressure Switch: An OverviewThe Turtle Shape Pressure Switch is a specialized component in water pump systems designed to monitor and control pressure levels. Its unique shape, reminiscent of a turtle's shell, is not just for aesthetics but also serves a functional purpose. These sw...
The Garden Water Pump: An OverviewA garden water pump is a compact yet powerful device designed to efficiently deliver water to your plants, ensuring they receive the necessary hydration to flourish. These pumps come in various types, including submersible, centrifugal, and diaphragm pumps, each wit...
The Power of POLYAMIDE MaterialPOLYAMIDE, commonly known as nylon, is a versatile and durable synthetic polymer known for its exceptional strength, chemical resistance, and heat tolerance. Engineers and manufacturers have long recognized its potential in various applications, and now, it has made it...
Soyue is an reliable manufacturer of intelligent water pump controllers, Custom Water Pump Automatic Pressure Switch, Water Pump Pressure Controller Suppliers with long-term combination of technology and innovation.
