Model: PS02
● Special design body as bullet
● Adjustable Pressure Regulator is available
● Large connection thread: optional G2" size
● Color and cable both can be optional/customized

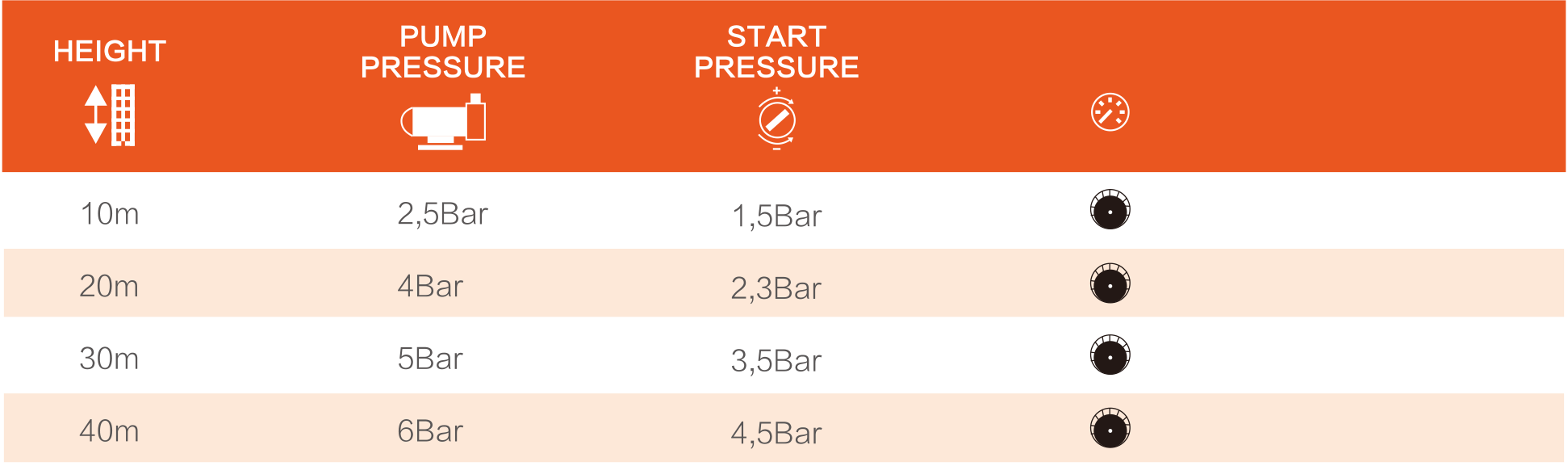

● Set up the start pressure according to the floor height and pump pressure
● Use original OMRON relay
| Rated voltage | 110V/220V/85V-285V |
| Maximum current | 10A/20A/30A |
| Frequency | 50/60Hz |
| Maximum powe | 1.1kw/1.8kw/2.2kw |
| Interface thread | G1"/G2" |
| Start pressure | 1.0Bar/1.5Bar/2.2Bar/1.0-2.5Bar/2.5-4.0Bar |
| Maximum working pressure | 10Bar |
| Protection grade | IP65 |
| Maximum operating temperature | 60℃/100℃ |
| Color | optional |
| Cable | optional |
|
Model |
Packing |
Size |
G.W/N.W.（KGS） |
Loading |
|

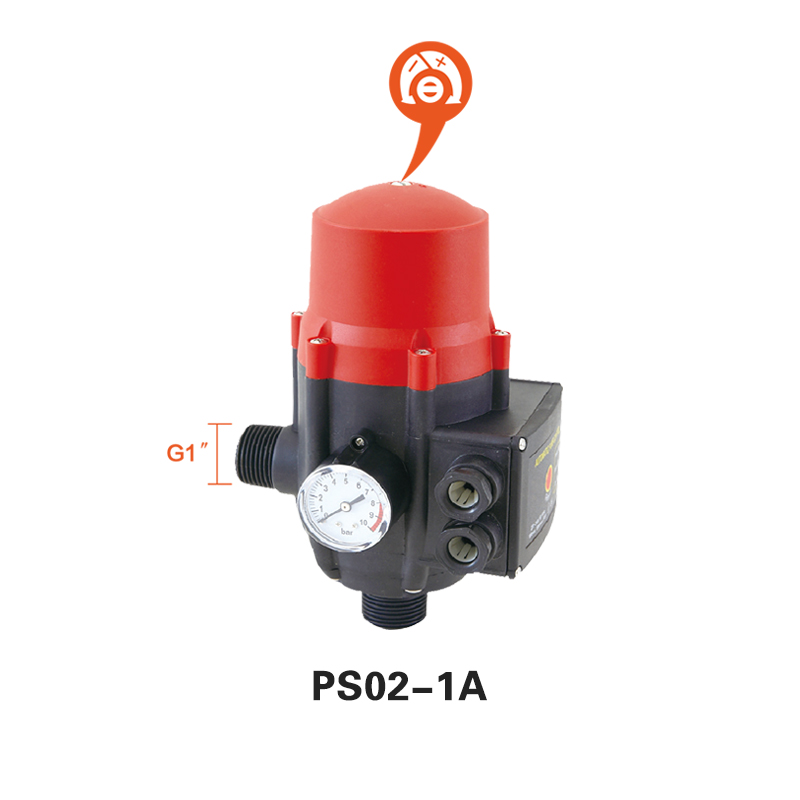

PS02-1A |
15pcs/ctn |
53*47*25 |
16.6/15.6 |
40ft HQ:16350pcs,20ft:6700 |
|

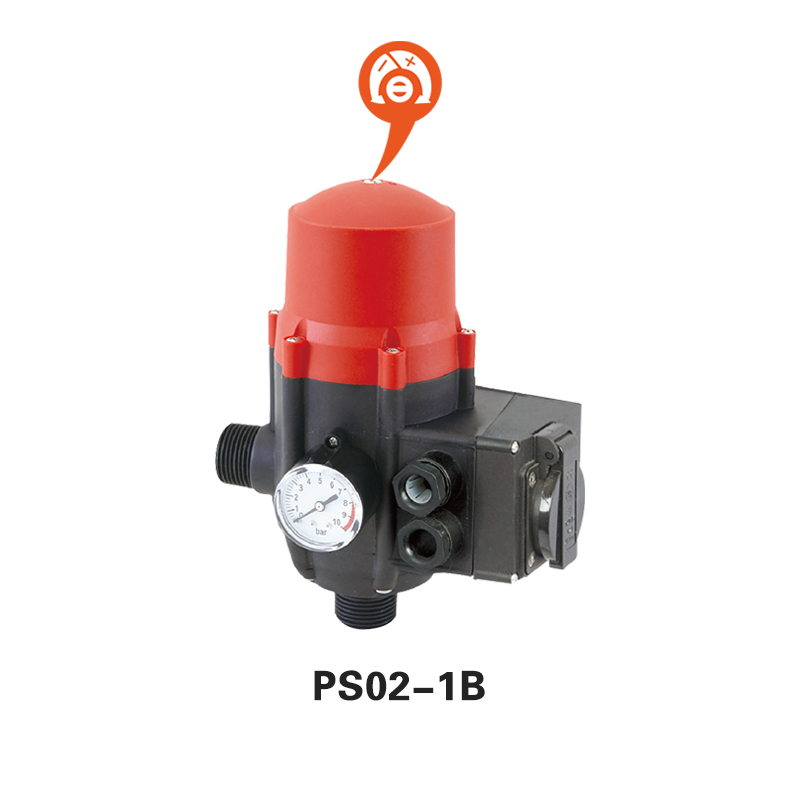

PS02-1B |
16pcs/ctn |
52*47*37 |
19.2/18.2 |
40ft HQ:12000pcs,20ft:4900 |
|
PS02-1C |
15pcs/ctn |
53*47*25 |
16.6/15.6 |
40ft HQ:16350pcs,20ft:6700 |
|

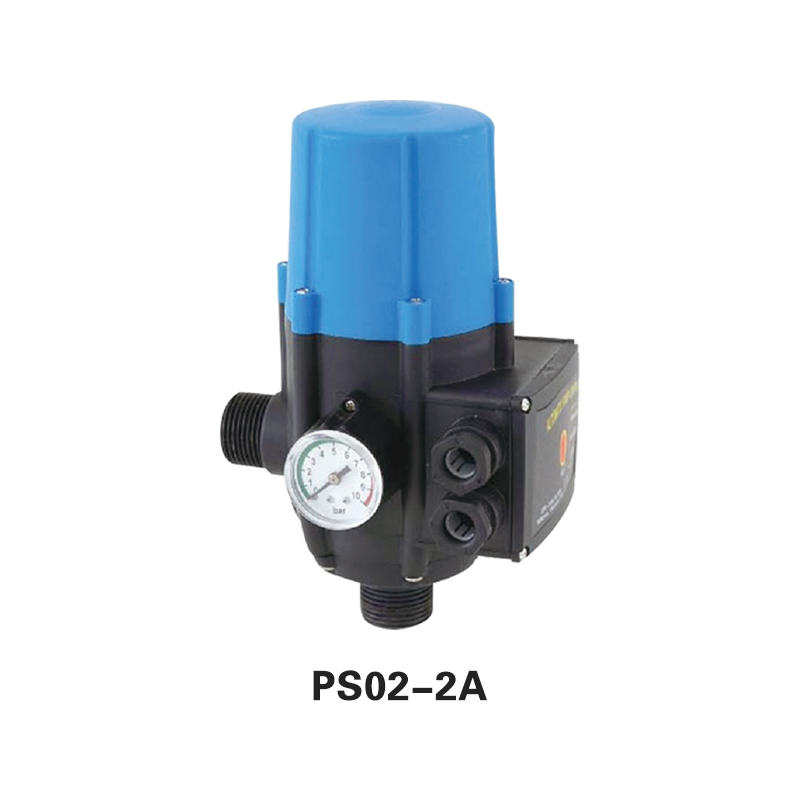

PS02-2A |
15pcs/ctn |
53*47*25 |
16.6/15.6 |
40ft HQ:16350pcs,20ft:6700 |
|

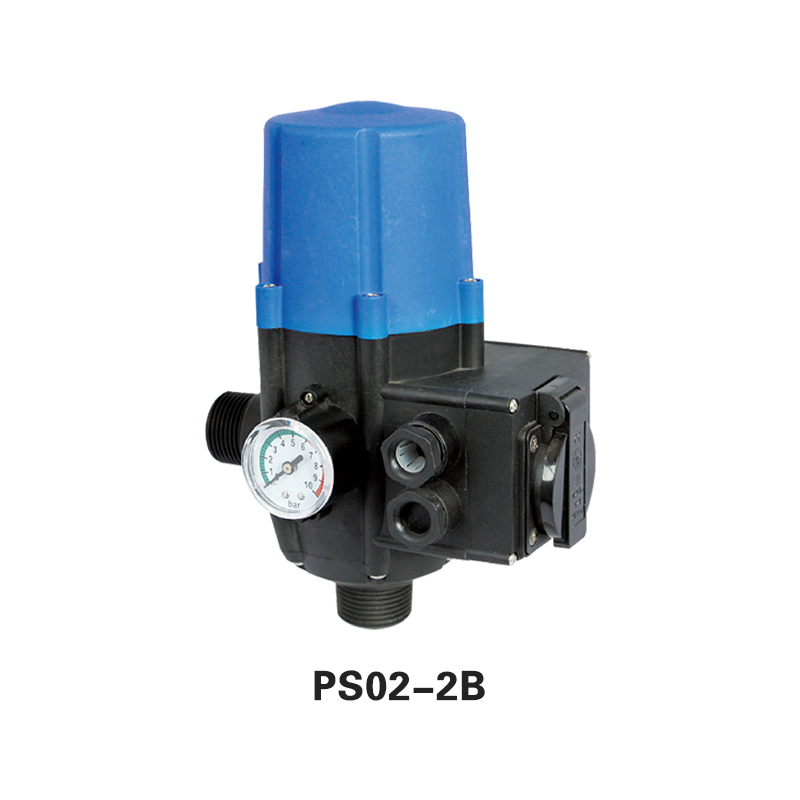

PS02-2B |
16pcs/ctn |
52*47*37 |
19.2/18.2 |
40ft HQ:12000pcs,20ft:4900 |
|

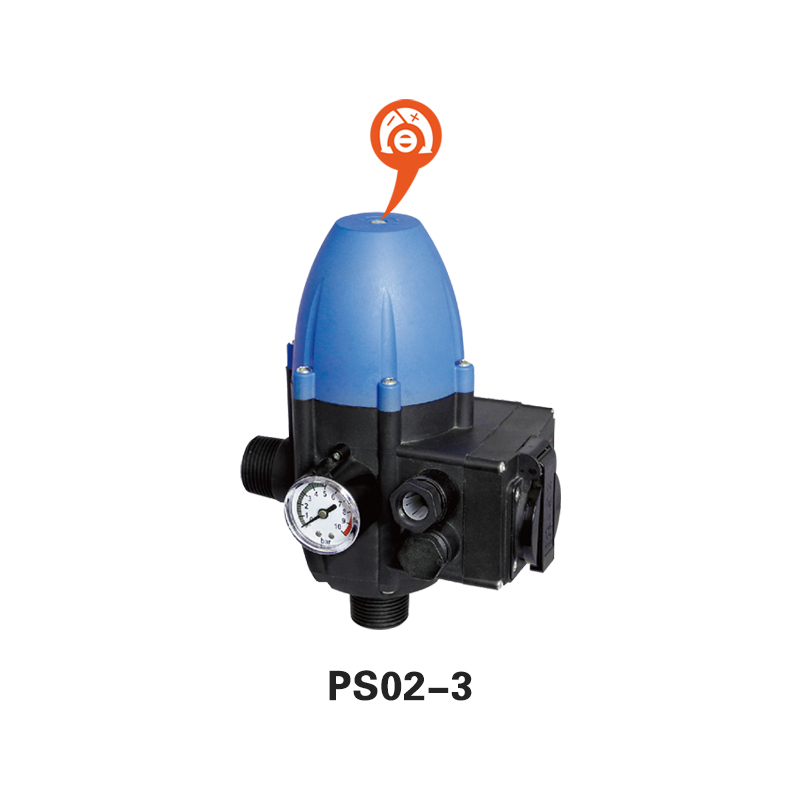

PS02-3 |
15pcs/ctn |
53*47*25 |
16.6/15.6 |
40ft HQ:16350pcs,20ft:6700 |
