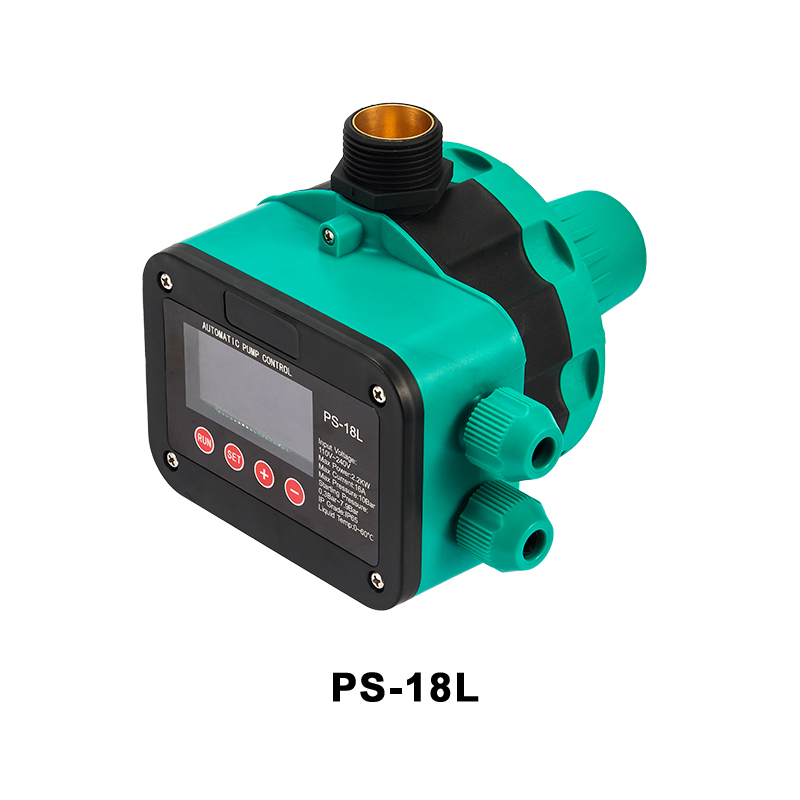

PS-18L Series Pressure Switch

Model: PS-18L

● Plastic part: new material no recycling, POLYAMIDE6 + GF30%

● Adjustable pressure button/differential pressure switch

● Ordinary wells& tube wells both available

● Optional Connection Thread size: G1’’, G1 1/4’’, G1 1/2’’

● Optional Power: 1.1kw, 1.8kw, 2.2kw

● Body is firm and watertight to protect the circuit board inside

● Protect Functions: Delay Startup, Dry Running Protection

  • Parameter
  • Package
  • Additional Information
  • Rated voltage:

    110V/220V/85V-285V

    Maximum current:

    10A/20A/30A

    Frequency:

    50/60Hz

    Maximum power:

    1.1kw/1.8kw/2.2kw

    Interface thread:

    G1"

    Start pressure:

    1.0Bar-5.5Bar

    Maximum working pressure:

    10Bar

    Protection grade:

    IP65

    Maximum operating temperature:

    60℃/100℃

    Color:

    Optional

    Cable:

    Optional

    With water shortage automatic start function.
