The product gallery on the left showcases our featured products. You can also customize your specific product according to the actual application.

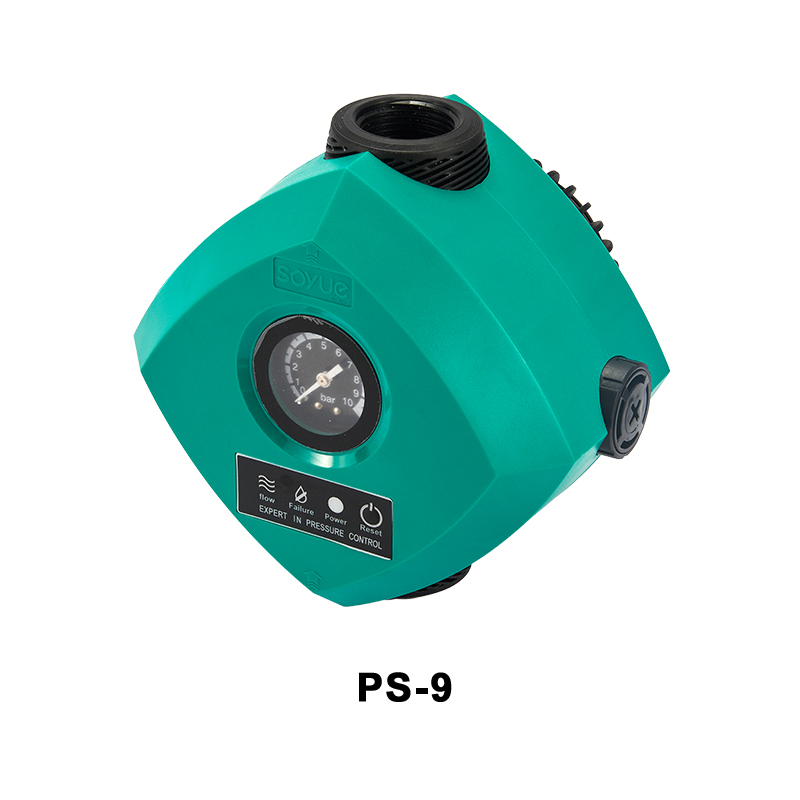

Model: PS9
● Plastic part: new material no recycling, POLYAMIDE6 + GF30%
● Adjustable pressure button/differential pressure switch
● Ordinary wells& tube wells both available
● Optional Connection Thread size: G1’’, G1 1/4’’, G1 1/2’’
● Optional Power: 1.1kw, 1.8kw, 2.2kw
● Body is firm and watertight to protect the circuit board inside
● Protect Functions: Delay Startup, Dry Running Protection
|
Rated voltage |
110V/220V/110V-240V |
|
Maximum current |
12A |
|
Frequency |
50/60Hz |
|
Maximum power |
1.5kw |
|
Interface thread |
G1" |
|
Start pressure |
1.0Bar-5.5Bar |
|
Maximum working pressure |
10Bar |
|
Protection grade |
IP65 |
|
Maximum operating temperature |
60℃/100℃ |
|
Color: |
Optional |
|
Cable: |
Optional |
|
Watershortage self start function: |
Optional |
|
Operation&Stop the water pump automatically |
Force Start |
|
Stop the water pump automatically in water shortage |
With Pressure Buffer |
|
Re-start automatically after cut-off the power |
Stable performance |
|
Maintain the water pressure in pipeline |
Easy to install |
|
HEIGHT |
PUMP PRESSURE |
START PRESSURE |
|
10m |
2,5Bar |
1,5Bar |
|
20m |
4Bar |
2,3Bar |
|
30m |
5Bar |
3,5Bar |
|
40m |
6Bar |
4,5Bar |
Taizhou Soyue Electronic Technology Co.Ltd established in 2010, is a leading professional manufacturer for research,development ,production and sales of automatic pressure controls, float switches and accessories for water pump.
To meet all kinds of needs, we can develop and produce to client 's special demand. We have our own 3D designer, moulddeveloping lines, high pressure PU injection machine, PCB machine line and advanced testing equipment, which can be easier for customers to design and develop new products. As PS-9 Series Pressure Switch suppliers and OEM/ODM PS-9 Series Pressure Switch factory, we achieve the quality management and have received CCC securitycertification and ISO9001:2008 quality system certification. Our products all successfully meet standards with European CE,TUV,ROHS, and UL Certificates.
look forward to working with you wholeheartedly.
The Vital Role of Water PumpsWater pumps serve as the backbone of many households, drawing water from sources such as wells, reservoirs, or municipal supplies and delivering it to our faucets, showers, and appliances. While various types of water pumps exist, such as jet pumps and submersible pumps,...
The Basics of Water PumpsWater pumps are essential for many homes, particularly those in rural areas or locations with low water pressure. These devices are responsible for drawing water from a well, a reservoir, or a municipal supply and delivering it to your taps. While water pumps come in various...
Understanding Electrical Water Level Control Float SwitchesAn electrical water level control float switch is a simple yet highly effective device designed to control the water level within a reservoir or a sump. It consists of a float that rises and falls with the water level, connected to an electr...
Soyue is an reliable manufacturer of intelligent water pump controllers, Custom PS-9 Series Pressure Switch Suppliers with long-term combination of technology and innovation.
